Dynaco PAT-5 Solid-State Stereo Preamplifier with Dual Phono, Tape & Speaker Control

Currency:CAD Category:Electronics / Vintage Electronics Start Price:10.00 CAD
Dynaco PAT-5 Solid-State Stereo Preamplifier with Dual Phono, Tape & Speaker Control
CURRENT BID
0.00CAD
ENTER YOUR MAXIMUM ABSENTEE BID[?]
You must bid at least
10.00CAD
CAD
10.00 x 1 unit = 10.00CADApplicable fees & taxes are added at checkout.
[?]Live Online Auction Starts In 2026 Oct 13 @ 10:00 (UTC-07:00 : PDT/MST)
Preview: October 10th (10am - 5pm)
Pick ups: October 14th - October 16th (10am - 5pm)

Preview and Pick up location: 27294 Fraser Hwy, Aldergrove, BC V4W 3P8

Placing your bid is your acceptance of all Terms and Conditions, Buyers Premium, Taxes, Shipping and Payment information.

• ALL items are AS IS WHERE IS, NO EXCEPTIONS. Our Catalogues are used as a guideline only! BRING YOUR OWN PACKING MATERIALS

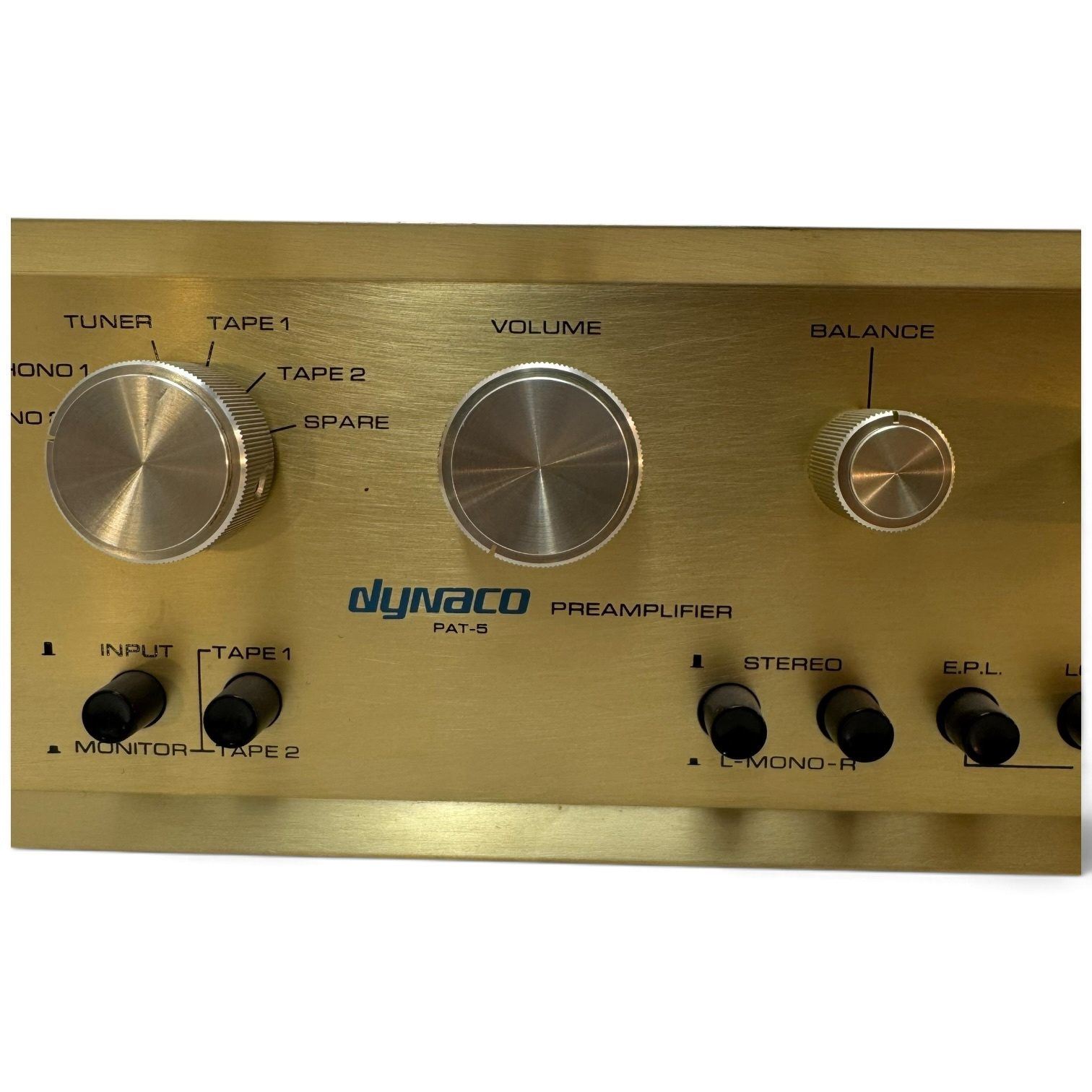

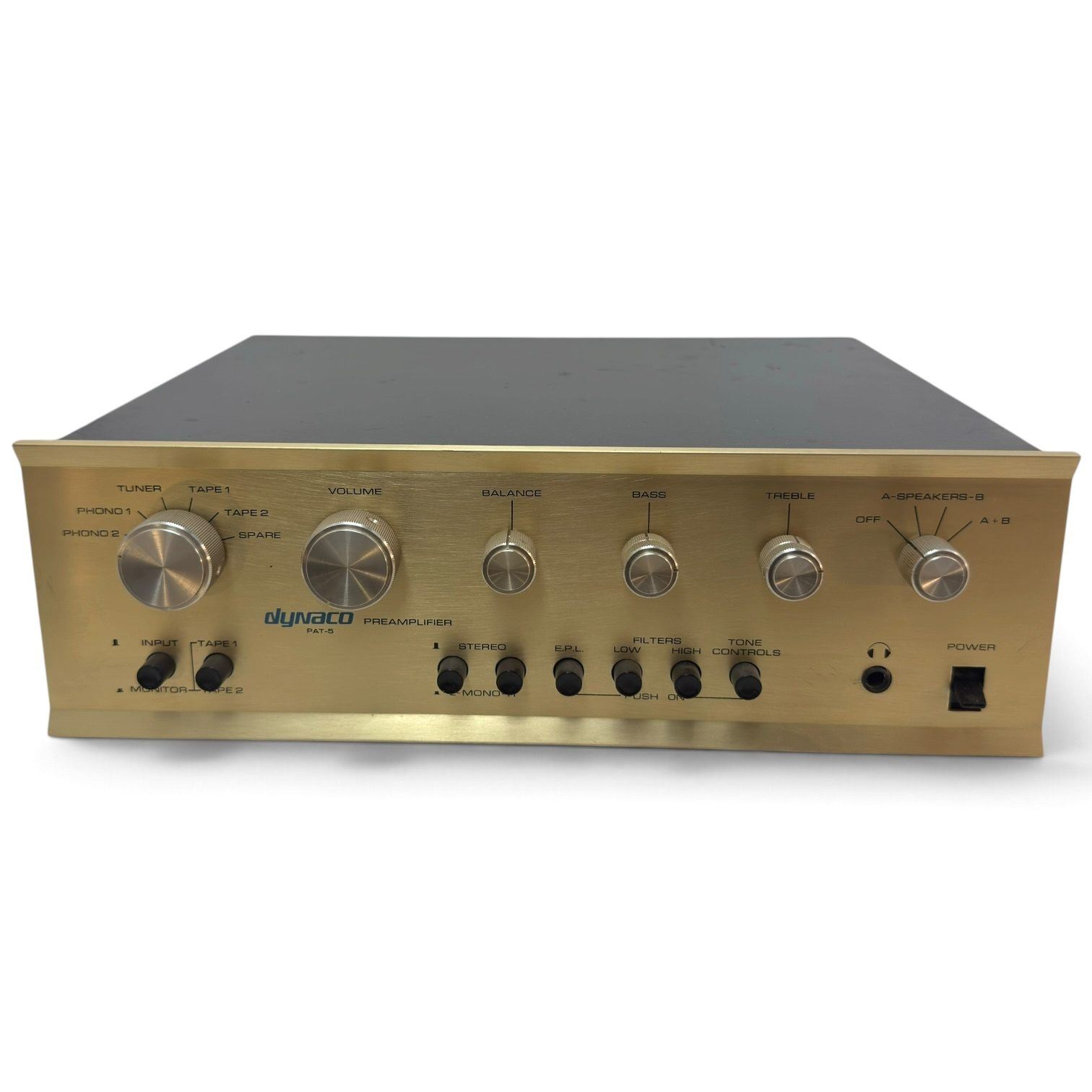

Introduced in 1974, the Dynaco PAT-5 is a solid-state stereo control preamplifier designed for use with a separate power amplifier. It has a brushed gold-tone faceplate, black push-button controls and a black metal case. The front panel provides input selection, volume, balance, bass and treble controls, stereo/mono selection, low and high filters, tone-control defeat, tape monitoring, external processor-loop switching, headphone output and A/B speaker selection. Connections include two magnetic phono inputs, tuner, two tape loops, a spare input, external processor loop, dual audio outputs, speaker terminals and switched and unswitched AC convenience outlets. The manufacturer specified a high-level frequency response of 10 Hz-50 kHz, output up to 7 volts into 10,000 ohms and 12-watt power consumption. The rear panel is marked for 120-volt AC operation.

Manufacturer: Dynaco
Model: PAT-5
Type: Solid-state stereo control preamplifier
Model Introduction: 1974

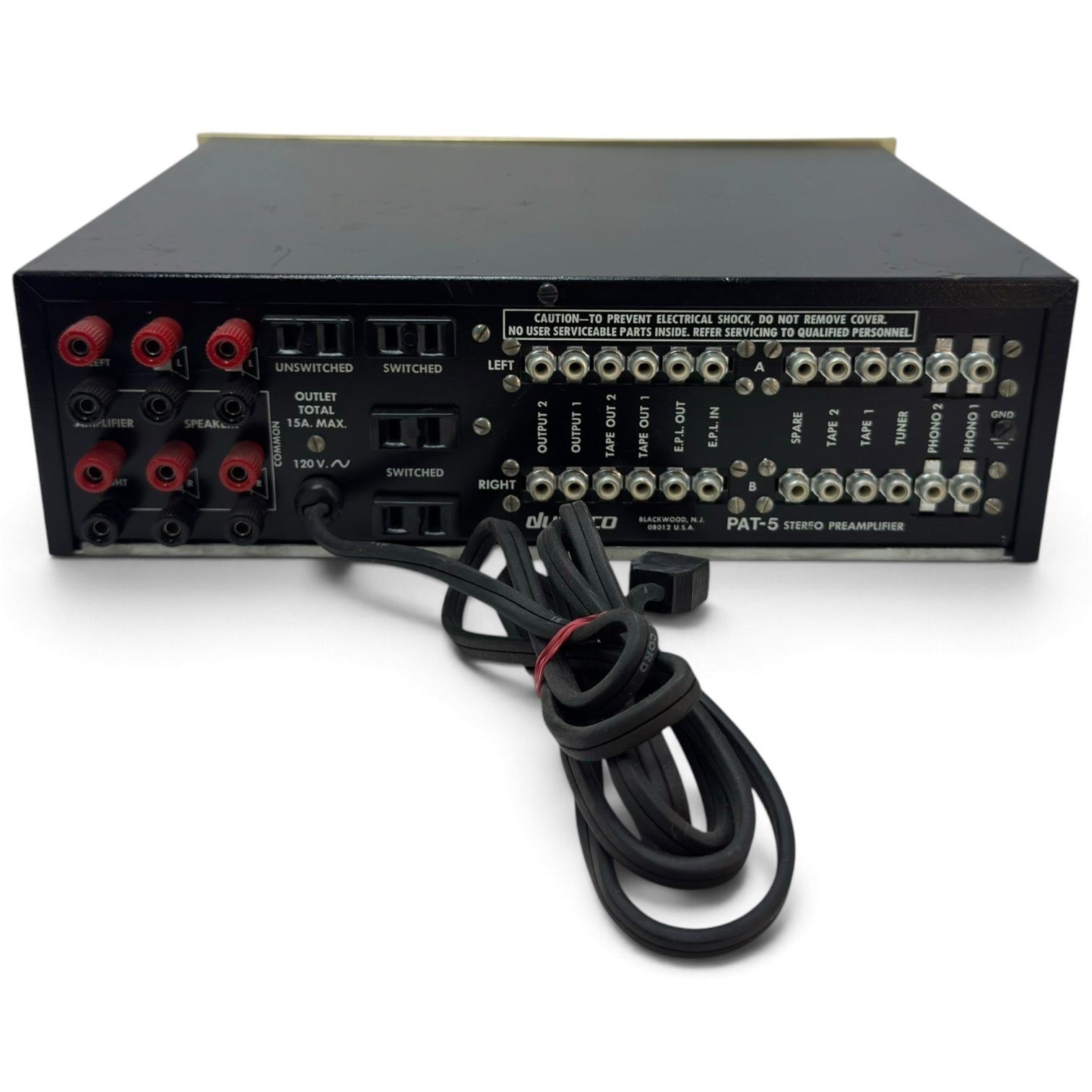

Inputs: Two magnetic phono, two tape, tuner, spare and external processor loop
Outputs & Switching: Dual audio outputs, two tape outputs, external processor loop, headphone output and A/B speaker control
Manufacturer Specifications: High-level response ±1 dB, 10 Hz-50 kHz; output up to 7 V into 10,000 ohms; 12 W consumption
Line Power: 120 V AC
Condition: As pictured.
